Amphenol Broadband BDPS 19 Series - Data Plus Coaxial Splitter for Cable TV, Modems & VoIP, Dedicated 9 dB Data Port, Zinc Die-Cast Housing and EMI Shielding

Amphenol Broadband BDPS 19 Series - Data Plus Coaxial Splitter for Cable TV, Modems & VoIP, Dedicated 9 dB Data Port, Zinc Die-Cast Housing and EMI Shielding

por Amphenol Broadband
$16.95
Size
  • CABLE TV, MODEM & VoIP DISTRIBUTION - splitters distribute an incoming coaxial cable signal to multiple TV/RF connections while providing a dedicated DATA connection for a cable modem and modem-based VoIP services.
  • FOUR OUTPUT CONFIGURATIONS - BDPS1912VF provides 2 RF outputs plus 1 DATA port; BDPS1913VF provides 3 RF outputs plus 1 DATA port; BDPS1914VF provides 4 RF outputs plus 1 DATA port; BDPS1915VF provides 5 RF outputs plus 1 DATA port.
  • DEDICATED 9 dB DATA PORT - each model includes a separate DATA port with nominal 9 dB attenuation and a clear return path for cable modem communication. Actual insertion loss varies with frequency; select the configuration according to your connection needs and available signal levels.
  • DIE-CAST ZINC CONSTRUCTION - durable zinc housing encloses the internal signal distribution components. The integrated RF and DATA port arrangement provides a single distribution point for TV equipment and a cable modem sharing an incoming coaxial connection.
  • EMI SHIELDING & INSTALLATION APPLICATIONS - fully soldered back cover helps shield internal components against electromagnetic interference. Designed for coaxial cable distribution in homes, apartments, multi-dwelling buildings, and business premises.

Amphenol Broadband BDPS 19 Series Data Plus coaxial splitters distribute an incoming cable signal to multiple TV/RF connections while providing a dedicated DATA port for a cable modem and modem-based VoIP services. Available in four output configurations, these models support cable installations in homes, apartments, multi-dwelling buildings, and business premises.

Each model features one dedicated DATA port with nominal 9 dB attenuation and a clear return path for cable modem communication. The main difference between the models is the number of TV/RF outputs, allowing you to select a configuration that matches your installation.

MODEL CONFIGURATIONS:

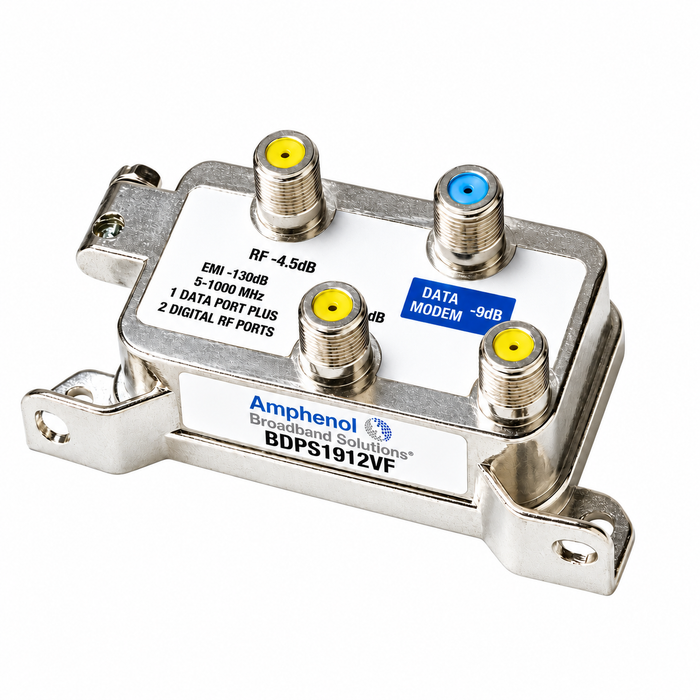

• BDPS1912VF - Includes 2 TV/RF outputs and 1 dedicated 9 dB DATA port, providing 3 total outputs. Accommodates up to two TV/RF connections alongside a cable modem.

• BDPS1913VF - Includes 3 TV/RF outputs and 1 dedicated 9 dB DATA port, providing 4 total outputs. Accommodates up to three TV/RF connections alongside a cable modem.

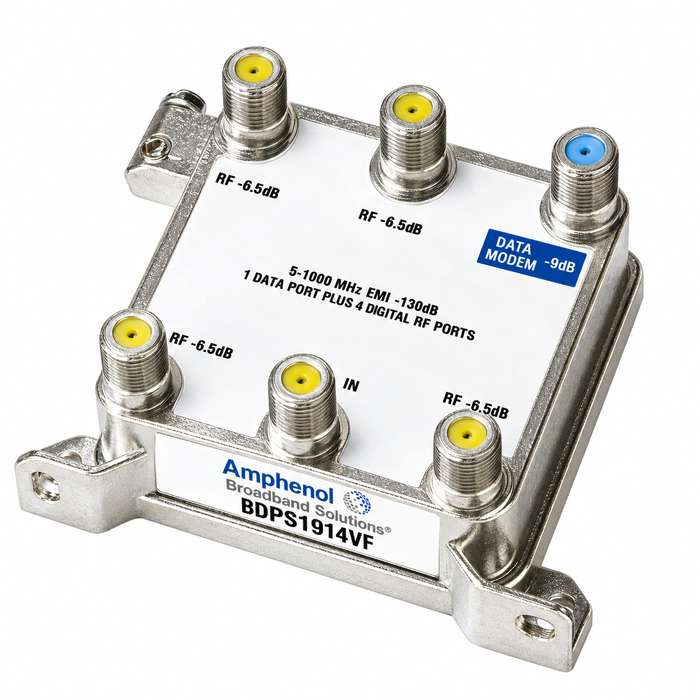

• BDPS1914VF - Includes 4 TV/RF outputs and 1 dedicated 9 dB DATA port, providing 5 total outputs. Accommodates up to four TV/RF connections alongside a cable modem.

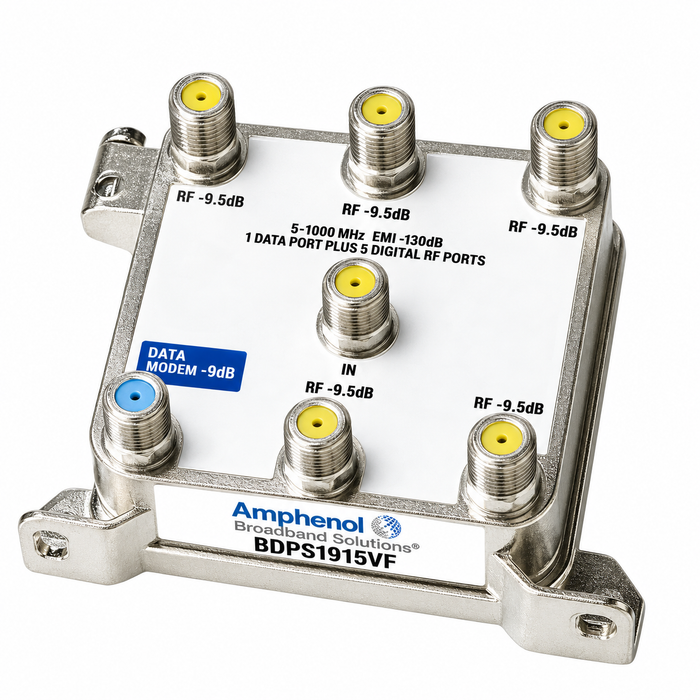

• BDPS1915VF - Includes 5 TV/RF outputs and 1 dedicated 9 dB DATA port, providing 6 total outputs. Accommodates up to five TV/RF connections alongside a cable modem.

The series features die-cast zinc housings and fully soldered back covers that help shield internal components against electromagnetic interference. Integrated RF and DATA connections provide a single distribution point for installations where television equipment and a cable modem share an incoming coaxial cable.

Choose the model according to the number of TV/RF connections required and the signal levels available in your installation. The 9 dB DATA port rating is nominal; actual insertion loss varies with frequency. All output counts listed above exclude the input connection.
