Reliable 200A Single-Phase Automatic Transfer Switch for Backup Power Systems

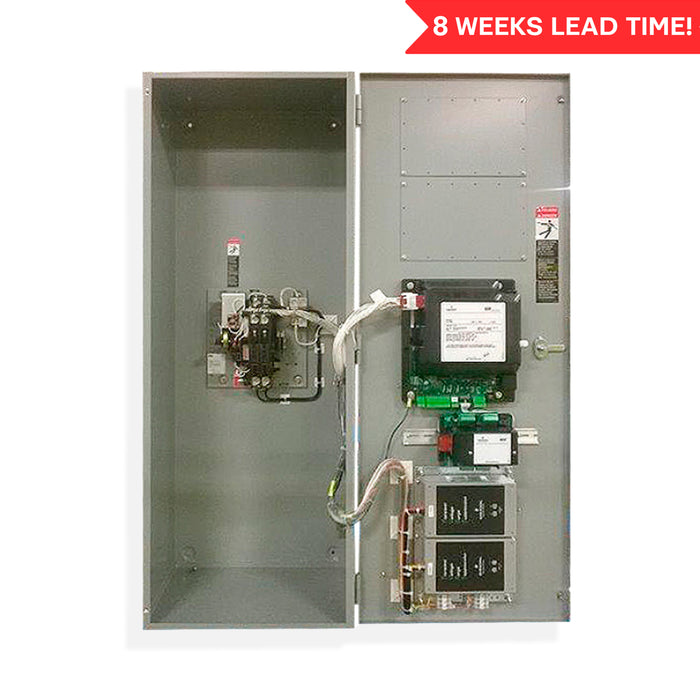

The Intersect ATS-G-1PH-11BE Automatic Transfer Switch Panel is a high-performance 200 Amp, single-phase (1Ø) ATS designed to ensure seamless power transfer between utility and generator sources. Built with the trusted ASCO Series 300 transfer switch and Group G Controller, this unit delivers dependable operation for critical power applications.
Ideal for commercial, light industrial, and residential backup systems, this ATS guarantees uninterrupted power during outages.
Key Features
-
200 Amp Automatic Transfer Switch (ATS)
Designed for reliable switching between utility and generator power.
-
Single-Phase (1Ø) Configuration
Compatible with 120/240V or 120/208V systems.
-
ASCO Series 300 Transfer Mechanism
- True double-throw design
- Single solenoid operation
- UL 1008 Listed for safety and performance
-
Group G Digital Controller
- LCD interface with intuitive keypad
- 6 LED indicators for system status
- Event logging (up to 300 events)
- Built-in diagnostics and system monitoring
Advanced Power Monitoring
- Voltage and frequency sensing on both sources
- Adjustable parameters in 1% increments
- Under/over voltage and frequency protection
- Pre- and post-transfer time delay settings
Generator Integration
-
Automatic engine start/stop control contacts
- Ensures immediate generator response during outages
- Smooth transition back to utility power when restored
Technical Specifications
-
Amperage: 200 Amps
-
Phase: Single-Phase (1Ø)
-
Voltage: 120/240V or 120/208V
-
Controller: Group G
-
Transfer Switch: ASCO Series 300
-
Standards Compliance: UL 1008, NFPA 110
-
Enclosure Type: NEMA 1 (Indoor)
