Amphenol Broadband BDPS 16x Series - Data Plus Coaxial Splitter for Cable TV, Modems & VoIP, Dedicated 6 dB Data Port, Zinc Die-Cast Housing and EMI Shielding

Amphenol Broadband BDPS 16x Series - Data Plus Coaxial Splitter for Cable TV, Modems & VoIP, Dedicated 6 dB Data Port, Zinc Die-Cast Housing and EMI Shielding

by Amphenol Broadband
$16.95
Size
  • CABLE TV, MODEM & VoIP DISTRIBUTION - splitters distribute an incoming coaxial cable signal to multiple TV/RF connections while providing a dedicated DATA connection for a cable modem and modem-based VoIP services.
  • THREE OUTPUT CONFIGURATIONS - BDPS1612VF provides 2 RF outputs plus 1 DATA port; BDPS1614VF provides 4 RF outputs plus 1 DATA port; BDPS1615VF provides 5 RF outputs plus 1 DATA port. Select the model that matches the number of connections required.
  • DEDICATED 6 dB DATA PORT - Each model includes a separate DATA port with nominal 6 dB attenuation and a clear return path for cable modem communication. Actual insertion loss varies with frequency, allowing the appropriate model to be selected according to installation signal requirements.
  • 1 GHz BROADBAND PERFORMANCE - Specified for coaxial cable signal distribution from 5 to 1000 MHz. RF output attenuation varies by model and frequency, with configurations offering more RF outputs introducing greater signal loss at each TV connection.
  • ZINC HOUSING & EMI SHIELDING - Die-cast zinc construction and a fully soldered back cover help shield internal components against electromagnetic interference. Designed for residential, apartment, multi-dwelling, and business installations where TV equipment and a modem share an incoming cable connection.

Amphenol Broadband Solutions (ABS) Data Plus coaxial splitters distribute an incoming cable signal to multiple TV/RF connections while providing a dedicated DATA port for a cable modem and modem-based VoIP services. Available in three configurations, these models support cable installations in homes, apartments, multi-dwelling buildings, and business premises.

Each model features one dedicated DATA port with nominal 6 dB attenuation and a clear return path for cable modem communication. The main difference between the models is the number of TV/RF outputs. Signal loss at the RF outputs also varies by model and frequency, with higher-output configurations introducing greater attenuation.

MODEL CONFIGURATIONS:

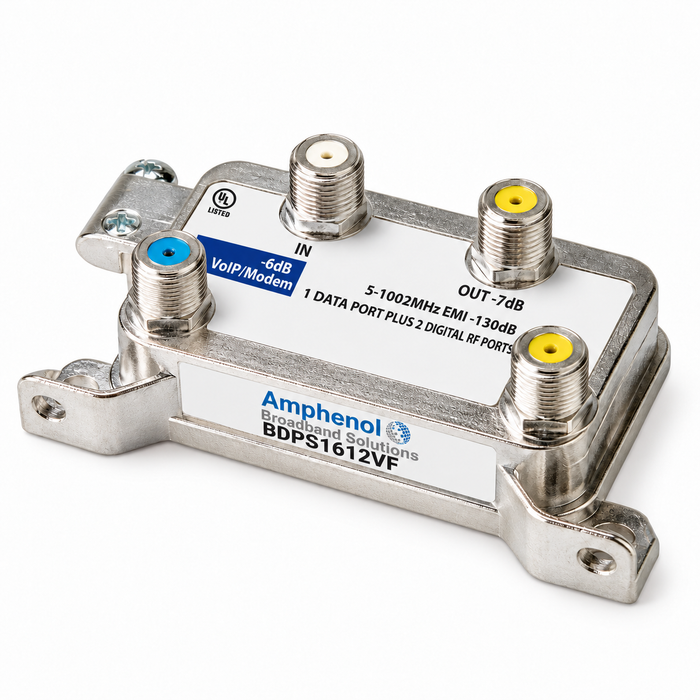

• BDPS1612VF - Includes 2 TV/RF outputs and 1 dedicated 6 dB DATA port, providing 3 total outputs. This configuration accommodates up to two TV/RF connections alongside a cable modem.

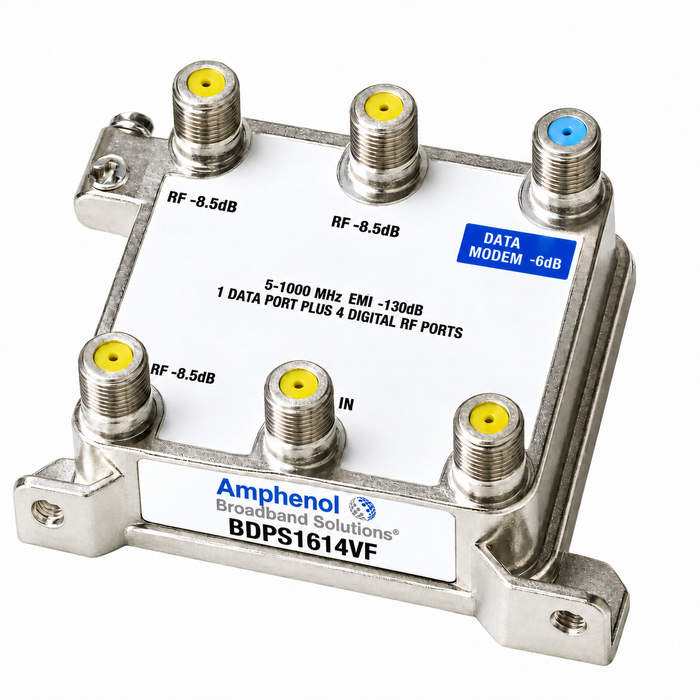

• BDPS1614VF - Includes 4 TV/RF outputs and 1 dedicated 6 dB DATA port, providing 5 total outputs. This configuration accommodates up to four TV/RF connections alongside a cable modem.

• BDPS1615VF - Includes 5 TV/RF outputs and 1 dedicated 6 dB DATA port, providing 6 total outputs. This configuration accommodates up to five TV/RF connections alongside a cable modem.

All three models feature a die-cast zinc housing and fully soldered back cover that help shield internal components against electromagnetic interference. Their integrated RF and DATA connections provide a single distribution point for installations where television equipment and a cable modem share an incoming coaxial cable.

Choose the model according to the number of TV/RF connections required and the signal levels available in your installation. The 6 dB DATA port rating is nominal; actual insertion loss varies with frequency. All output counts listed above exclude the input connection.
