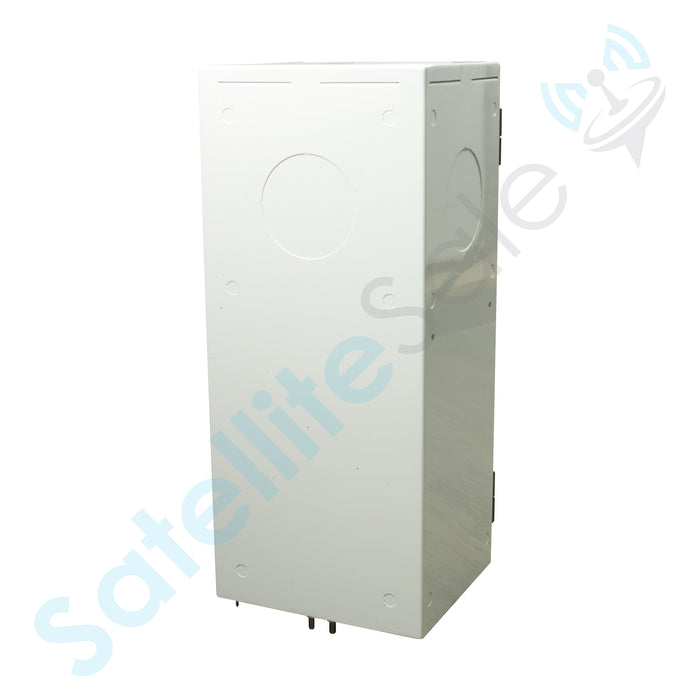

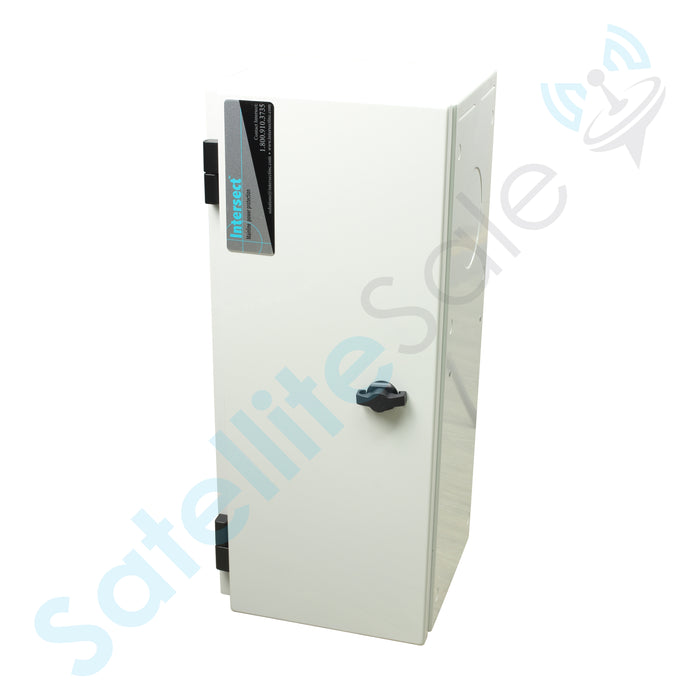

Featuring a Type 3R enclosure for outdoor use, the Intersect Cam-Lok Generator Connector (ICGC) Series uses Com-Lok style connectors and replaces commonly-used generator receptacles. Knockouts on the left, right, and back side of the enclosure provide three installation options. May be wall-mounted, H-Frame mounted, or installed as a new or retrofit engine generator connector to shelters or cabinets. Connect or disconnect Cam Lok-style connectors without tools—just a 180° turn assures a high-pressure contact with minimum resistance. 10 kA short circuit rating appropriate for new and retrofit applications without requiring any labeling changes or derating of 10 kA rated emergency power systems. Proven to provide optimal electrical and mechanical connections in numerous power applications and severe operating conditions – contacts withstand a pulling force of 1,000 lbs. A gasket ships with each ICGC to insure a watertight seal. Optional cable kit for auto start-stop of an engine generator set (from the automatic transfer switch connections) assures wiring is on-site for installations.
Enclosure dimensions (H x W x D)
UL 1008A, 5th ed, or current
- 3Ø, rated 208/120, 200 amps,10 kA short circuit
Electrical
- UL Listed Cam-Lok style, 180° twist on/off single-pole receptacles
- Conforms to NEC
- Rated up to 400 A, 208/120 V, 3Ø
- May be used for 240/120 1Ø applications
- Cam-Lok terminal acceptance:- Plug: 200 A, #2 to 4/0 AWG- Receptacle: 200 A, #2 to 4/0 AWG
Power connectors
- Solid brass machined connectors

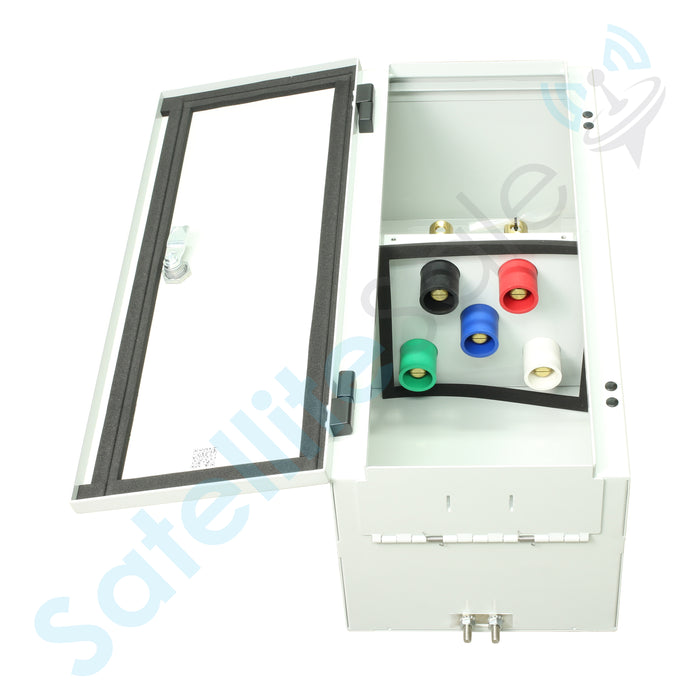

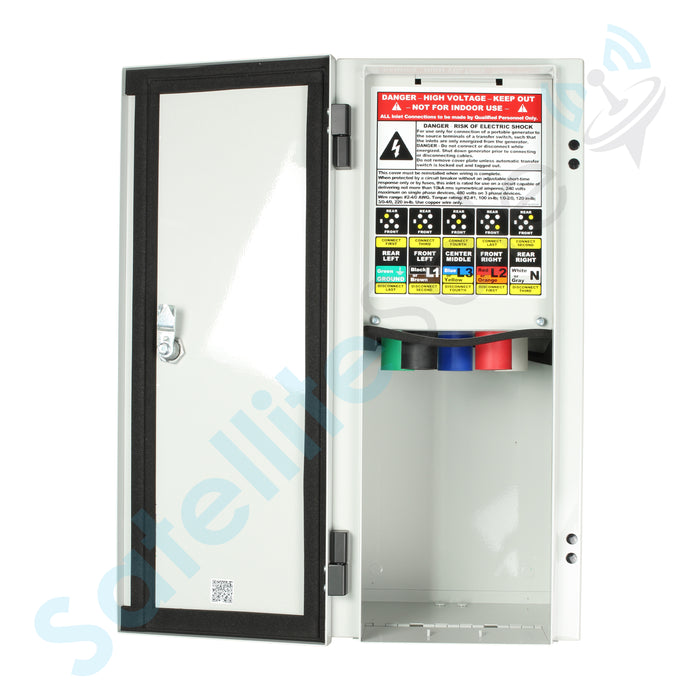

Color coded:
- Green – Ground
- White – Neutral
- Black – Line 1
- Red – Line 2
- Blue – Line 3
