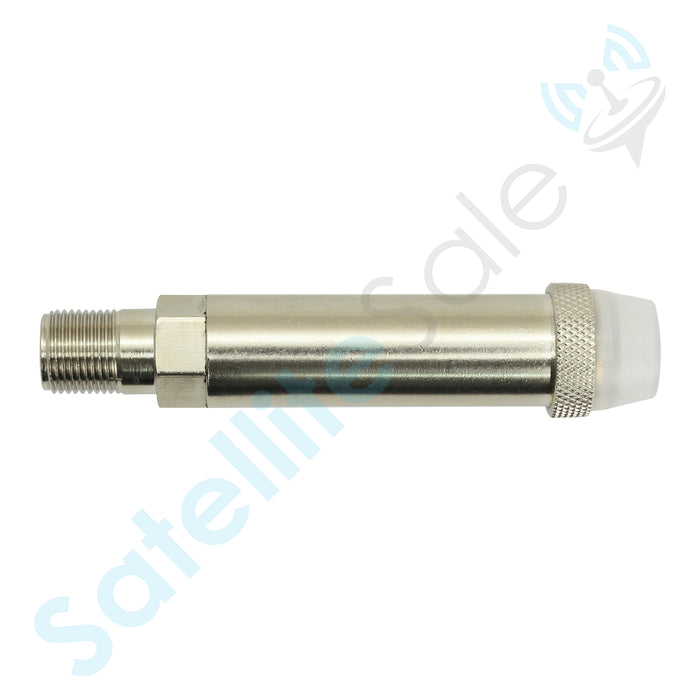

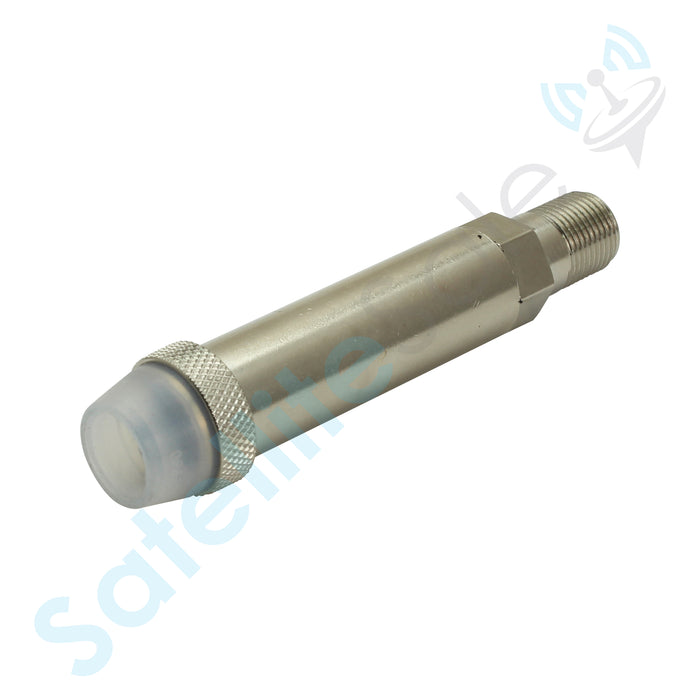

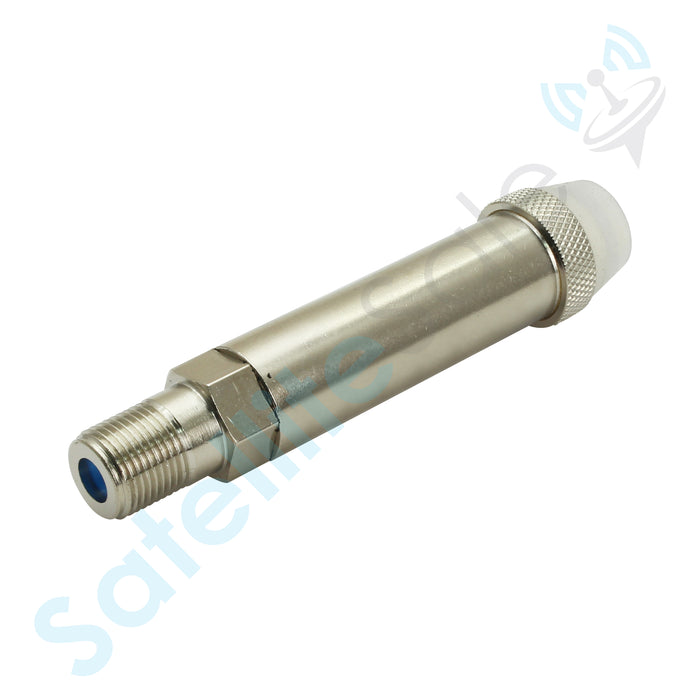

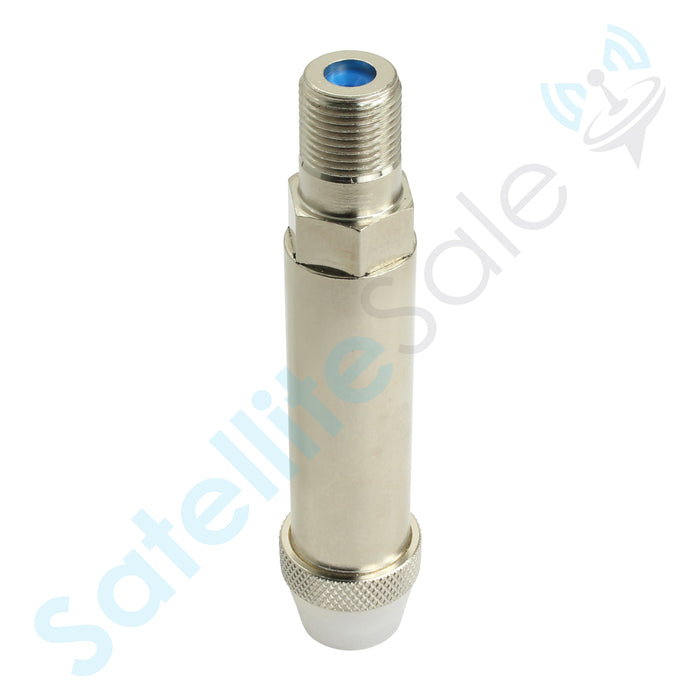

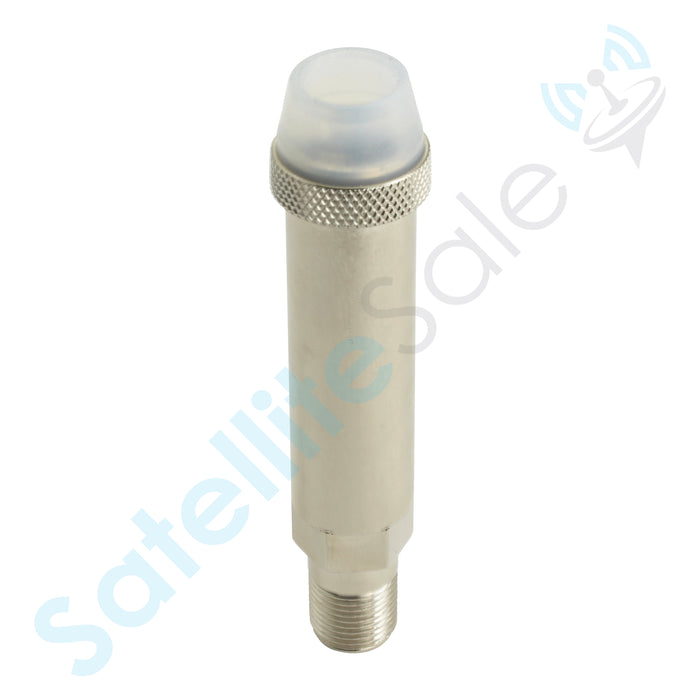

SatelliteSale 70 dB MoCA PoE Filter Coaxial Point of Entry Low Pass Filter, 5-1002 MHz Passband, 1125-1675 MHz Isolation, 75 Ohm, for MoCA 2.5 Cable TV and Internet Networks

SatelliteSale 70 dB MoCA PoE Filter Coaxial Point of Entry Low Pass Filter, 5-1002 MHz Passband, 1125-1675 MHz Isolation, 75 Ohm, for MoCA 2.5 Cable TV and Internet Networks

by SatelliteSale
$13.95
  • 70 dB MOCA BAND ISOLATION — Provides at least 70 dB attenuation across 1125-1675 MHz to help keep MoCA traffic inside the premises and reduce signal leakage, neighboring-network interference, and unwanted MoCA signals entering the home.
  • LOW-LOSS 1 GHz PASSBAND — Passes 5-1002 MHz with no more than 1.0 dB insertion loss through 860 MHz and 1.7 dB maximum loss from 860-1002 MHz, preserving compatible cable TV and cable internet signals.
  • BUILT FOR MOCA 2.5 COAX NETWORKS — Designed for 75-ohm coax installations and MoCA 2.5, MoCA 2.0, and earlier networks using the 1125-1675 MHz band. Suitable for MoCA adapters, compatible gateways, and multi-room DVR systems.
  • SIMPLE POINT-OF-ENTRY INSTALLATION — Connect the male-to-female F-type filter where the provider coax enters the home, ahead of the first splitter. The bidirectional design prevents orientation errors and reflects MoCA energy back into the home's coax network.
  • CHECK YOUR SERVICE FREQUENCIES — Intended for cable TV and internet systems operating within 5-1002 MHz. Not for satellite TV or cable systems using service frequencies above 1002 MHz. Install this non-weather-sealed version indoors or in a protected enclosure.

The SatelliteSale 70 dB MoCA Point-of-Entry Filter creates a radio-frequency boundary between your home's coax network and the outside cable plant. Installed where the incoming coax line reaches the first splitter, it passes compatible cable TV and cable internet signals from 5-1002 MHz while providing at least 70 dB of isolation across the 1125-1675 MHz MoCA band.

By keeping MoCA signals inside the premises, the filter helps reduce signal leakage, interference between neighboring coax networks, and unwanted external MoCA traffic. It also reflects MoCA energy back into the home's coax wiring, which can improve link margin and connection stability. It is a passive component and does not require power or network configuration.

The 75-ohm filter uses male and female F-type coax connections and may be installed in either direction. Connect it at the point of entry, before the first splitter that feeds the home's MoCA devices. It works with MoCA 2.5, MoCA 2.0, and earlier equipment operating in the 1125-1675 MHz band, including compatible MoCA adapters, gateways, and multi-room DVR systems.

Important: confirm that your cable provider's active service spectrum does not extend above 1002 MHz. This filter is not intended for satellite TV systems. This non-weather-sealed version should be installed indoors or in a protected enclosure.

Package includes: 1 MoCA point-of-entry coax filter.
